This is a universal 1-litre black aluminium reservoir used as a coolant overflow tank, water reservoir or catch can, collecting fluid or vapour vented from a vehicle system so it does not end up in the engine bay or on the road.

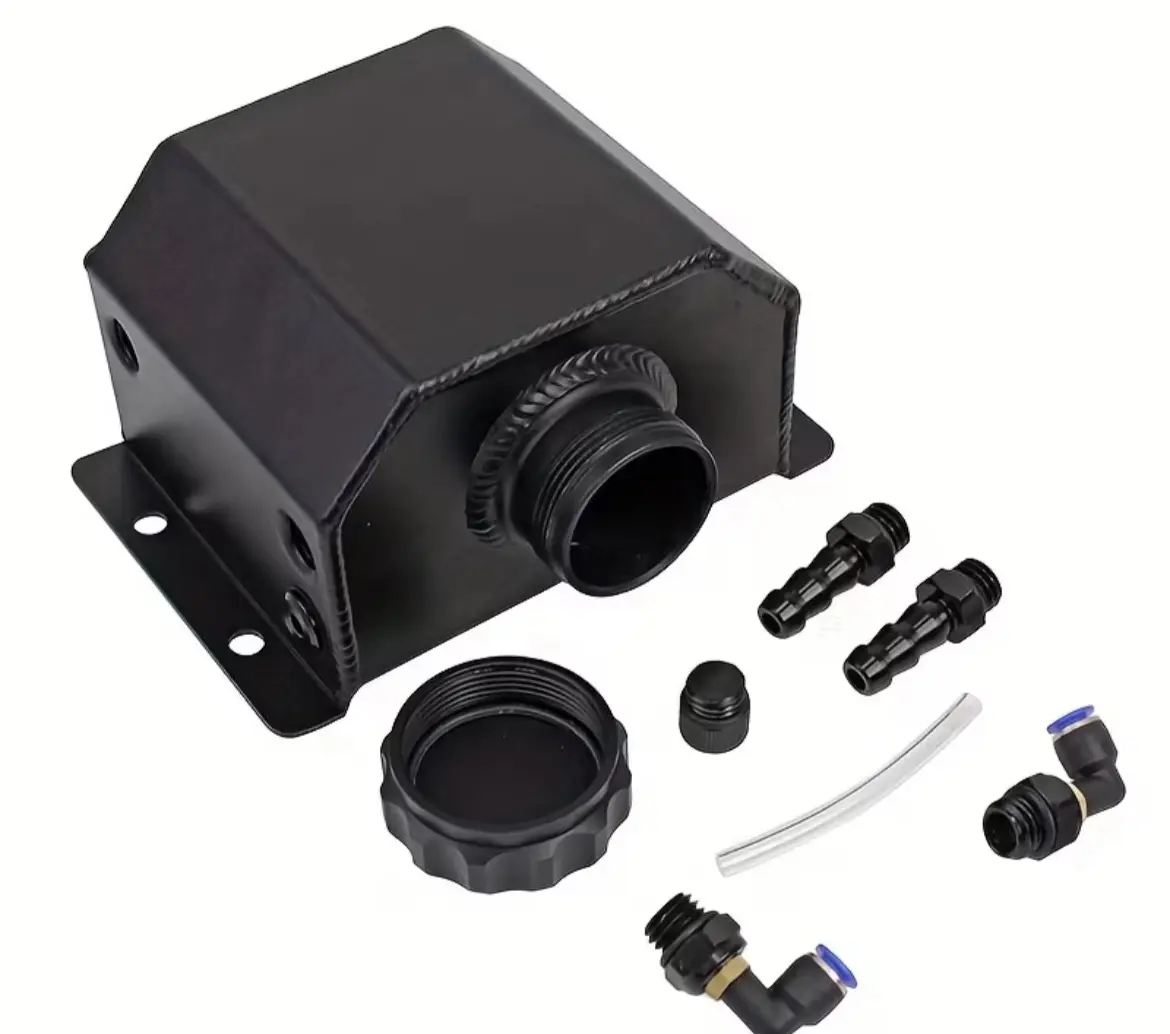

What’s in the box
- 1 x 1L reservoir with welded mounting bracket
- 1 x screw-on cap with seal
- 2 x barbed hose fittings
- 1 x blanking plug
- 2 x push-in elbow fittings with a clear sight tube
- Drain plug in the base
Key features
- 1-litre capacity
- Welded aluminium construction, black finish
- Clear external sight tube to check the fluid level at a glance
- Two side ports for barbed hose fittings, plus a blanking plug for an unused port
- Drain plug at the base for emptying
- Bracket with holes for mounting in the engine bay
Typical uses
- Coolant overflow / recovery tank
- Windscreen washer or water reservoir
- Catch can for oil vapour or vented fluid
Installation notes
Mount the reservoir upright, away from exhaust heat, with the sight tube where you can see it. Use hose that suits the fittings and the fluid, secure every hose with a clamp, and check for leaks once the engine is up to temperature. Never open a cooling system while it is hot. If you need it plumbed into your cooling system, the Menin Motorsport workshop in Pretoria can fit it for you.
Frequently asked questions
What is the capacity?
The reservoir holds 1 litre.
Can I see how full it is?
Yes. A clear sight tube on the side shows the fluid level without removing the cap.
How do I empty it?
There is a drain plug in the base, or you can remove the screw-on cap.
