This is a five-control 12V switch panel that combines a covered ignition switch, a push-button engine start and three accessory toggle switches, used to run ignition, starting and accessories from one panel in a race, track or project car.

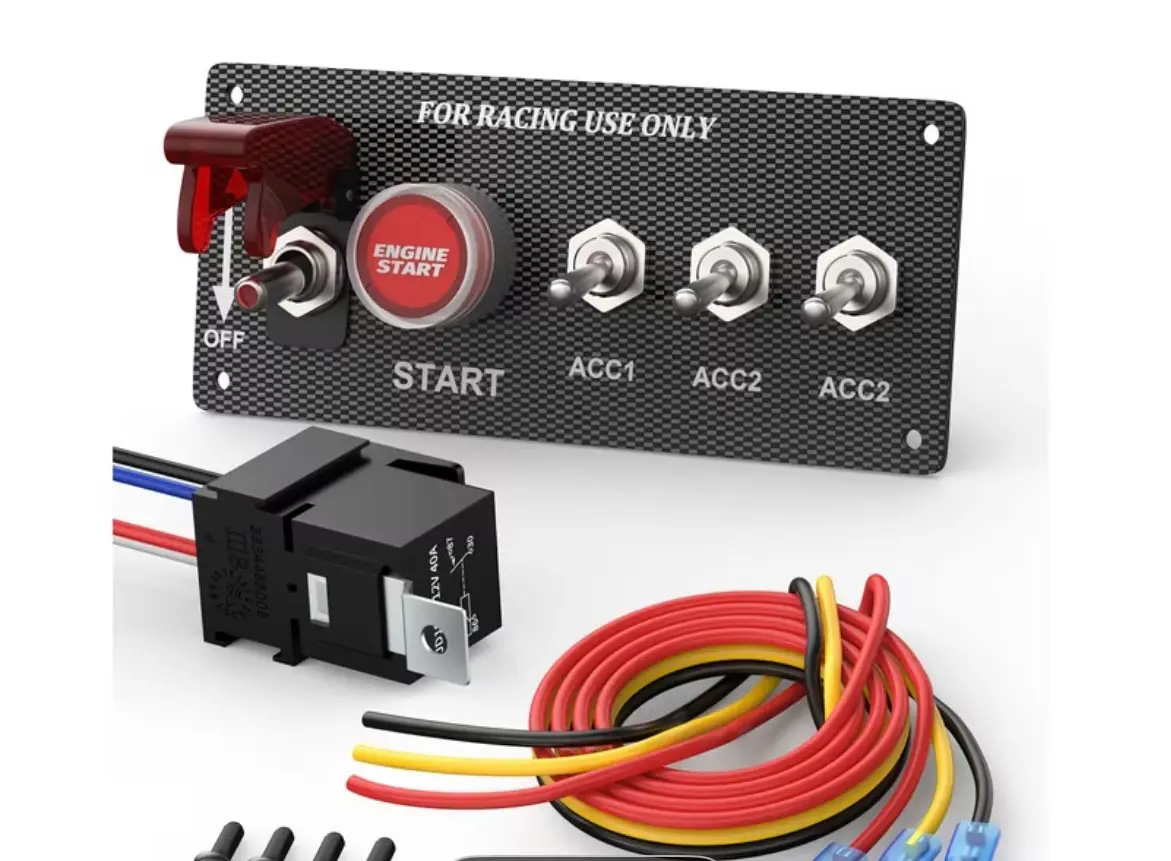

What’s in the box
- Switch panel with carbon-fibre-pattern finish
- 1 x 12V 40A relay with pre-wired socket
- Wiring leads (red, yellow and black) with crimp terminals
- 4 x mounting screws
Key features
- Ignition toggle with a red flip-up safety cover, so it cannot be knocked on by accident
- Red push-button labelled ENGINE START
- Three chrome toggle switches for accessories such as fans, lights or pumps
- Labelled panel (START, ACC) for clear identification
- Four corner mounting holes
- Panel printed FOR RACING USE ONLY
Typical uses
- Track, drag and race cars
- Kit cars and project builds
- Replacing a key barrel on competition vehicles
- Grouping fan, fuel pump and light switches in one place
Installation notes
The starter circuit should be switched through the supplied relay, not directly through the push button. Fuse every circuit with a fuse rated for its load, use cable sized for the current, and disconnect the battery before you start. The panel is marked for racing use, so check roadworthy requirements before fitting it to a road car. Ignition and starter wiring is best done by an auto electrician; the Menin Motorsport workshop in Pretoria can fit and wire it for you.
Frequently asked questions
What comes with the panel?
The panel is supplied with a 12V 40A relay on a wired socket, wiring leads with crimp terminals and four mounting screws.
How many switches does it have?
Five controls: one covered ignition toggle, one engine start push button and three accessory toggle switches.
Why is a relay included?
The relay lets the small start button switch the heavy starter-solenoid current safely. The relay is rated 12V 40A.
